Problem Statement

Every device on a home network performs DNS lookups before connecting to a website. DNS (Domain Name System) is the mechanism that translates a domain name into an IP address – and the operator of the DNS resolver can observe every domain queried.

In a typical home network, those queries are handled by an ISP or a public DNS provider such as Google or Cloudflare:

1Device → ISP DNS / Public DNS → Internet

This means:

• Your ISP or DNS provider sees every domain queried
• All devices contribute to one central browsing history
• Ads and trackers resolve normally

DNS becomes a record of your activity.

Goals / Non-Goals

Goals

• Block advertising and tracking domains across all devices on the network
• Resolve DNS privately without relying on a third-party provider
• Require no configuration on individual devices

Non-Goals

Installation is not covered. Refer to the official documentation:

• Pi-hole Basic Install
• Unbound Setup for Pi-hole

Solution

Two services running on a Raspberry Pi 4 address the problem:

What Is Pi-hole?

Pi-hole acts as a DNS filtering layer.

It maintains a database of known ad, tracker, and malicious domains called gravity. When any device on the network queries a blocked domain, Pi-hole returns 0.0.0.0 – the request is stopped and the ad server is never contacted.

It works at the DNS level, before any content is loaded. No browser extension. No per-device setup. Every device on the network is covered automatically.

Without Pi-hole:

1Device → Public DNS → Ad domain → Content loads

With Pi-hole:

1Device → Pi-hole → Blocklist match → 0.0.0.0 / NXDOMAIN returned → Connection fails

What Is Unbound?

Unbound is a validating, caching recursive DNS resolver.

It performs the same role as public DNS resolvers but can be hosted locally within a home or private network.

Instead of forwarding queries to an external resolver, Unbound resolves domain names directly by querying the DNS hierarchy (root, Top-Level Domain, and authoritative servers).

Public DNS vs Recursive Resolver

These terms are often confused.

Google DNS, Cloudflare DNS, and Unbound all perform recursive resolution. The difference is who operates the resolver.

DNS Resolution with Unbound

The DNS system is organised as a hierarchy. Every domain name maps to a position within this tree:

1                    . (root)
2                    │
3       ┌────────────┼────────────┐
4      .org          .com         .uk      ← TLD (Top-Level Domain)
5       │             │            │
6 wikipedia.org   google.com    bbc.co.uk  ← second-level domain
7       │
8 en.wikipedia.org                         ← subdomain

When a device requests en.wikipedia.org, Unbound performs recursive resolution, locating the answer step by step:

1. Queries the root servers to learn which servers manage .org
2. Queries the .org TLD servers to find the authoritative servers for wikipedia.org
3. Queries the authoritative servers for wikipedia.org — which store the domain’s official DNS records — to obtain the IP address for en.wikipedia.org
4. Returns the result to Pi-hole, which then replies to the requesting device

Public DNS providers such as Google or Cloudflare perform the same recursive process on external infrastructure. Because DNS queries are sent to their resolvers first, those providers can observe — and potentially log — the domains being requested.

When Unbound runs locally, it performs this resolution itself by querying the DNS hierarchy directly instead of forwarding requests to a public resolver. As a result, no single third-party provider receives a complete history of DNS activity. Unbound also caches responses locally, allowing repeated queries to be answered faster and improving overall lookup performance.

Architecture

The diagram below compares DNS query flows side by side – with Pi-hole and Unbound on the left, and without on the right – showing exactly where queries are intercepted, filtered, or exposed at each step.

With Pi-hole + Unbound

1Devices → Pi-hole (filter + cache) → Unbound (recursive resolver) → Root → TLD → Authoritative servers

Without Pi-hole + Unbound

1Devices → ISP DNS / Public DNS → Internet

How It Works

Homelab Setup

I set up Pi-hole and Unbound on a Raspberry Pi 4, connected to my home broadband router. Pi-hole is assigned a static IP address (192.168.1.143) and acts as the DNS server for the entire network.

Hardware

• Raspberry Pi 4 Model B – 4 GB RAM
• Raspberry Pi OS Lite 64-bit (headless)
• Static IP address: 192.168.1.143

Services

Router Configuration

On my broadband router, I disabled DHCP and set the DNS Primary Server to Pi-hole's static IP:

With DHCP disabled on the router, Pi-hole takes over as the DHCP server. All devices on the network automatically receive 192.168.1.143 as their DNS server – no manual configuration required on client devices.

I also pointed the router's own DNS to Pi-hole, so router-originated queries are resolved locally.

Unbound Binding

Unbound listens only on localhost:

1127.0.0.1:5335

This means:

• It is not exposed to the network
• Only Pi-hole can query it
• External access is prevented

Upstream DNS Configuration

All third-party upstream DNS providers are disabled in Pi-hole.

Only Unbound is configured:

1127.0.0.1#5335

This ensures DNS queries are resolved locally.

Pi-hole Configuration

Blocklist Management

Pi-hole includes a default blocklist on installation:

1https://raw.githubusercontent.com/StevenBlack/hosts/master/hosts

This provides a baseline set of advertising and tracking domains.

I added two additional lists under Pi-hole → Group Management → Lists. HaGeZi's DNS blocklists are modern, consolidated lists designed to replace multiple smaller ones — covering ads, trackers, telemetry, malware, scam domains, and threat intelligence feeds in a single maintained source.

After adding, rebuild the gravity database:

1pihole -g

Pi-hole Dashboard

I access the dashboard at:

1http://192.168.1.143/admin

The dashboard provides:

• Real-time DNS query logs
• Top queried and blocked domains
• Blocking statistics
• Device activity overview

Pi-hole + Unbound: Why Together?

Pi-hole blocks unwanted domains but does not resolve allowed domains itself.

Pi-hole only:

1Device → Pi-hole → Public DNS → Internet

Advertising domains may be blocked, but DNS queries remain externally visible.

With Unbound:

1Device → Pi-hole → Unbound → Root → TLD → Authoritative → Response

DNS resolution occurs locally without reliance on public resolvers.

DNSSEC – Validation

DNSSEC adds cryptographic signatures to DNS responses.

Unbound validates these signatures to confirm that responses originate from the legitimate domain authority.

If validation fails, the response is rejected.

DNSSEC protects against tampered or forged DNS responses.

Verifying DNSSEC Validation

I tested DNSSEC validation directly against Unbound by running:

1dig fail01.dnssec.works @127.0.0.1 -p 5335
2dig +ad dnssec.works @127.0.0.1 -p 5335

Invalid DNSSEC domain

fail01.dnssec.works → SERVFAIL

Unbound correctly rejects the response because DNSSEC validation fails.

Valid DNSSEC domain

dnssec.works → NOERROR with ad flag

• NOERROR indicates a successful lookup
• The ad flag (Authentic Data) confirms the response was cryptographically validated using DNSSEC

Summary:

• fail01.dnssec.works → rejected invalid DNSSEC data
• dnssec.works → validated and authenticated successfully

Privacy vs Encryption

These concepts address different concerns.

Unbound improves privacy by removing centralised DNS providers.

DNS queries themselves remain standard DNS traffic.

Even though Unbound does not rely on the ISP's DNS resolver, DNS queries still traverse the ISP's network connection. This means the ISP may observe outbound DNS traffic at the network level (in-transit), even though no single external resolver receives a complete history of DNS queries.

Confirming the Setup

From a Windows device on my network, I ran:

1nslookup en.wikipedia.org

This is what I got:

1Server:  pi.hole
2Address:  192.168.1.143
3
4Non-authoritative answer:
5Name:    dyna.wikimedia.org
6Addresses: 185.15.59.224
7Aliases: en.wikipedia.org

Interpretation:

• Server: pi.hole indicates Pi-hole handled the query
• The request was not sent directly to an ISP or public DNS provider
• Pi-hole forwarded the request internally to Unbound

Verifying Pi-hole Uses Unbound as Upstream

I ran the following tests to confirm that Pi-hole forwards queries to Unbound and that caching is working correctly.

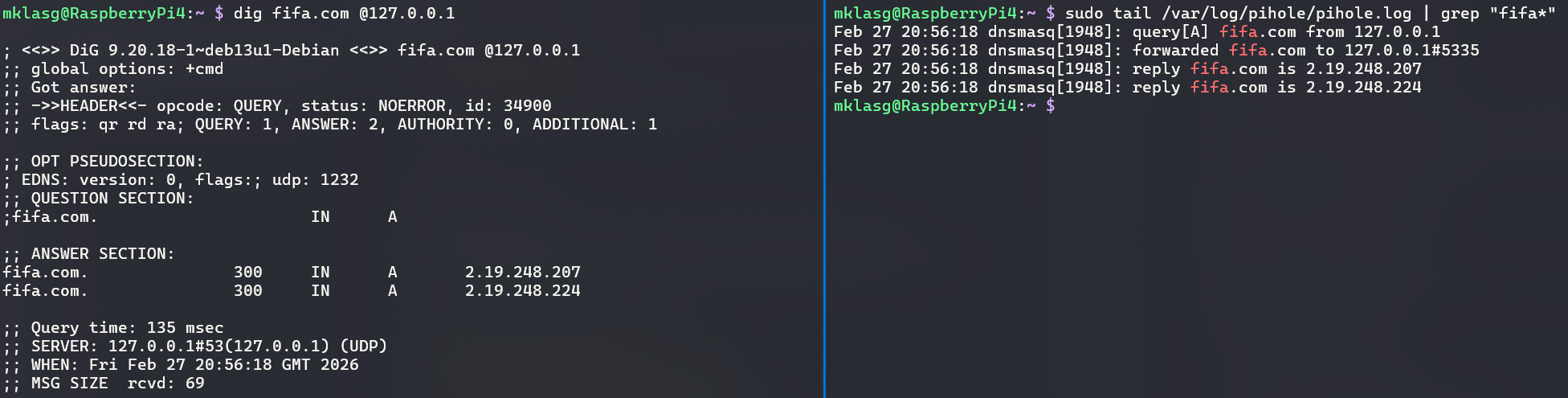

First Query – Recursive Resolution

I ran:

1dig fifa.com @127.0.0.1
2sudo tail /var/log/pihole/pihole.log | grep "fifa"

127.0.0.1 is the loopback address (localhost) — the Raspberry Pi itself. The @127.0.0.1 flag tells dig to send the query to Pi-hole running locally on the device. Pi-hole listens on the standard DNS port 53. It then forwards the query to Unbound, which listens on port 5335.

What I observed:

• Query time ≈ 135 ms
• Pi-hole log showed:

1forwarded fifa.com to 127.0.0.1#5335
2reply fifa.com is 2.19.248.207
3reply fifa.com is 2.19.248.224

Explanation:

• Pi-hole forwarded the query to Unbound at 127.0.0.1#5335
• Unbound performed recursive resolution by querying root, TLD, and authoritative DNS servers
• The higher query time occurs because the result was not yet cached

If you see queries forwarded to 127.0.0.1#5335, Pi-hole is correctly using Unbound as its upstream resolver.

Second Query – Cached Lookup

I ran the same query again:

1dig fifa.com @127.0.0.1
2sudo tail -n 10000 /var/log/pihole/pihole.log | grep "fifa"

This time:

• Query time ≈ 0 ms
• The log showed cached responses:

1cached fifa.com is 2.19.248.207
2cached fifa.com is 2.19.248.224

Explanation:

• The result is now served from Unbound's cache
• No external DNS queries are required
• Subsequent lookups are significantly faster

Alternative Approaches

DNS over HTTPS (DoH) and DNS over TLS (DoT) are encryption-focused alternatives. Both encrypt DNS queries in transit, preventing ISP-level interception.

The trade-off is centralisation. DoH and DoT hide the content of DNS queries from the network path, but they route all traffic through a single provider, which then receives a complete picture of every domain queried across the network.

This setup takes a different position: DNS queries are not encrypted in transit, but no single external resolver ever sees the full query history. Queries are distributed across the global DNS hierarchy rather than aggregated by one provider.

Conclusion

The DNS stack is managed locally within the home network:

• Router → DHCP disabled; primary DNS set to 192.168.1.143
• Pi-hole → acts as DHCP server; blocks advertising and tracking domains
• Unbound → performs recursive DNS resolution locally
• DNSSEC → cryptographically validates DNS responses

Pi-hole

• Blocks advertising and tracking domains
• Operates across all network devices without per-device configuration
• Prevents unwanted connections before they occur

Unbound

• Performs recursive DNS resolution locally
• Removes reliance on public DNS providers
• DNS requests are sent to Unbound (127.0.0.1#5335), which walks the DNS hierarchy directly — root → TLD → authoritative servers
• Distributes DNS queries across the global DNS hierarchy

Result

• All devices automatically use Pi-hole for DNS resolution
• Ads and trackers are blocked at the DNS level
• No dependency on public DNS resolvers
• DNS responses are validated and cached locally on the Raspberry Pi for faster lookups
• DNS responses are DNSSEC-validated, ensuring records are authentic and have not been tampered with in transit

Running Pi-hole and Unbound on a Raspberry Pi 4 was a deliberate homelab choice — prioritising privacy by keeping DNS resolution local rather than relying on external providers. DNS resolution remains under local control, with no centralised resolver maintaining a complete history of DNS activity and no ads reaching devices on the network.

This setup demonstrates how core internet infrastructure can be decentralised at home, restoring control over DNS resolution without sacrificing reliability or performance.
